Product Parameters
-----------------------------------------------------------
Parameter DC12V DC24V
-----------------------------------------------------------
Rated Voltage DC12V DC24V
Rated Current 53A 35A
Rated Power 636W 840W
Cooling Capacity 1800W 2000W
Heating Capacity / /
Refrigerant (Charging Weight) R134A R134a

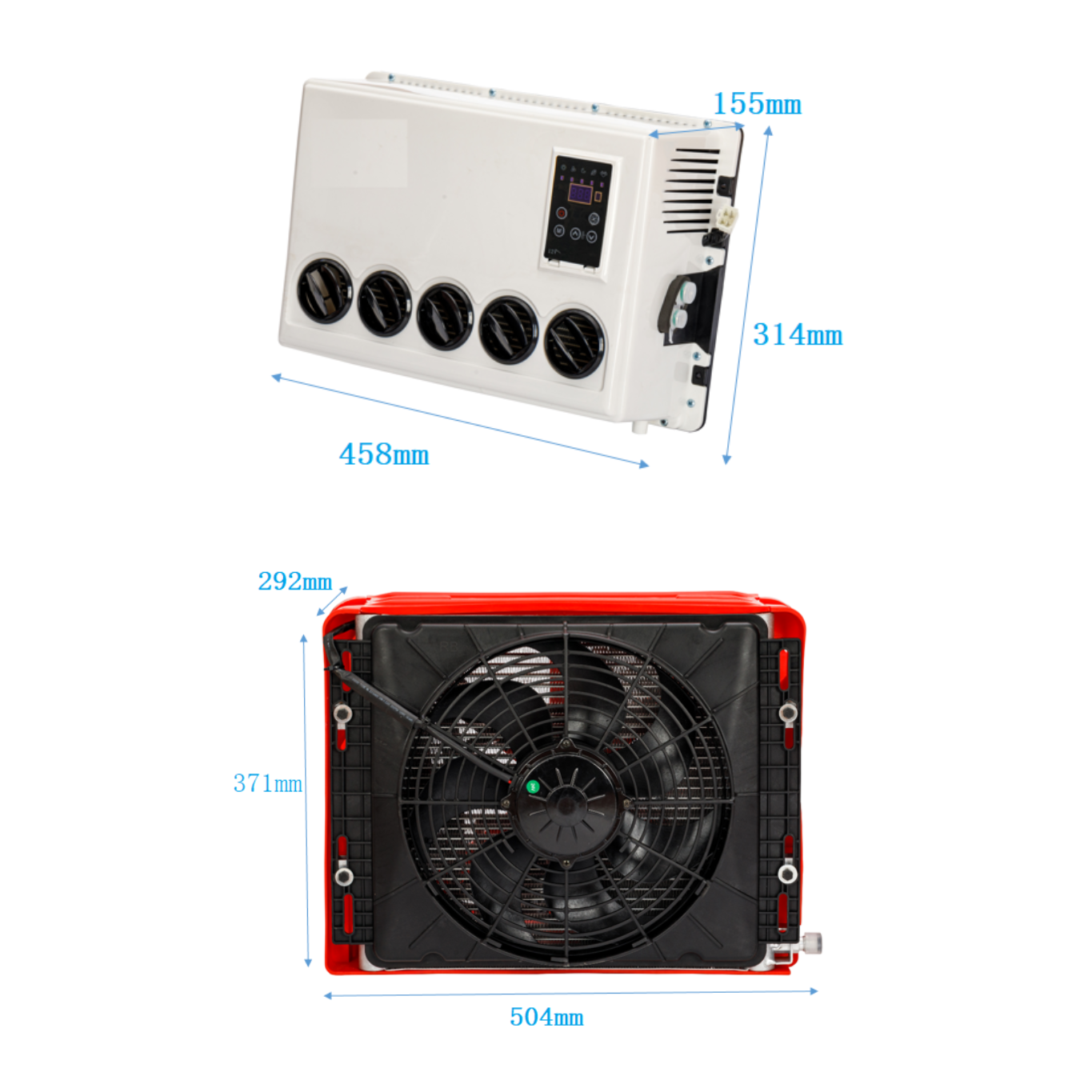

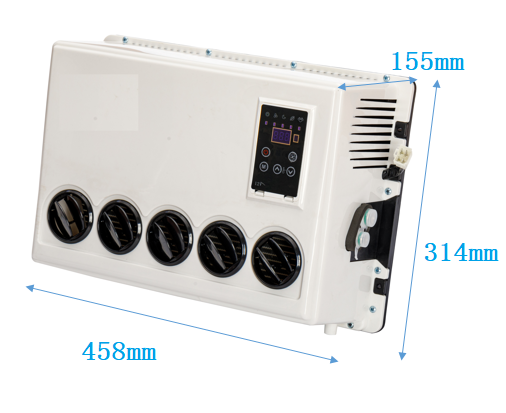

Indoor Unit Net Dimension 418×155×314 mm 418×155×314 mm
Indoor Unit Packaging Dimension 530×175×320 mm 530×175×320 mm

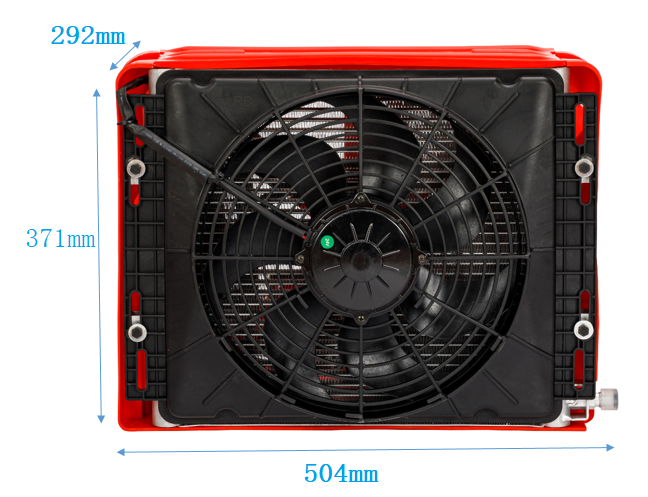

Outdoor Unit Net Dimension 504×292×371 mm 504×292×371 mm
Outdoor Unit Packaging Dimension 520×305×380 mm 520×305×380 mm
Evaporation Air Volume 350 m³/h 350 m³/h
Condensation Air Volume 1500 m³/h 1500 m³/h
Power Cord Specification 12mm² × 4M 8mm² × 4M
Remote Control Temp Range 17–30℃ 17–30℃
Indoor Unit Net / Gross Weight 6.9 / 10.5 Kg 6.9 / 10.5 Kg
Outdoor Unit Net / Gross Weight 14 / 16 Kg 13 / 15 Kg
